ACCESSORIES FOR SLIDING DOOR SYSTEM
Suitable for 10mm to 12mm tempered glass
Made of Stainless Steel.
Suitable for 10mm to 12mm tempered glass
Made of Stainless Steel.

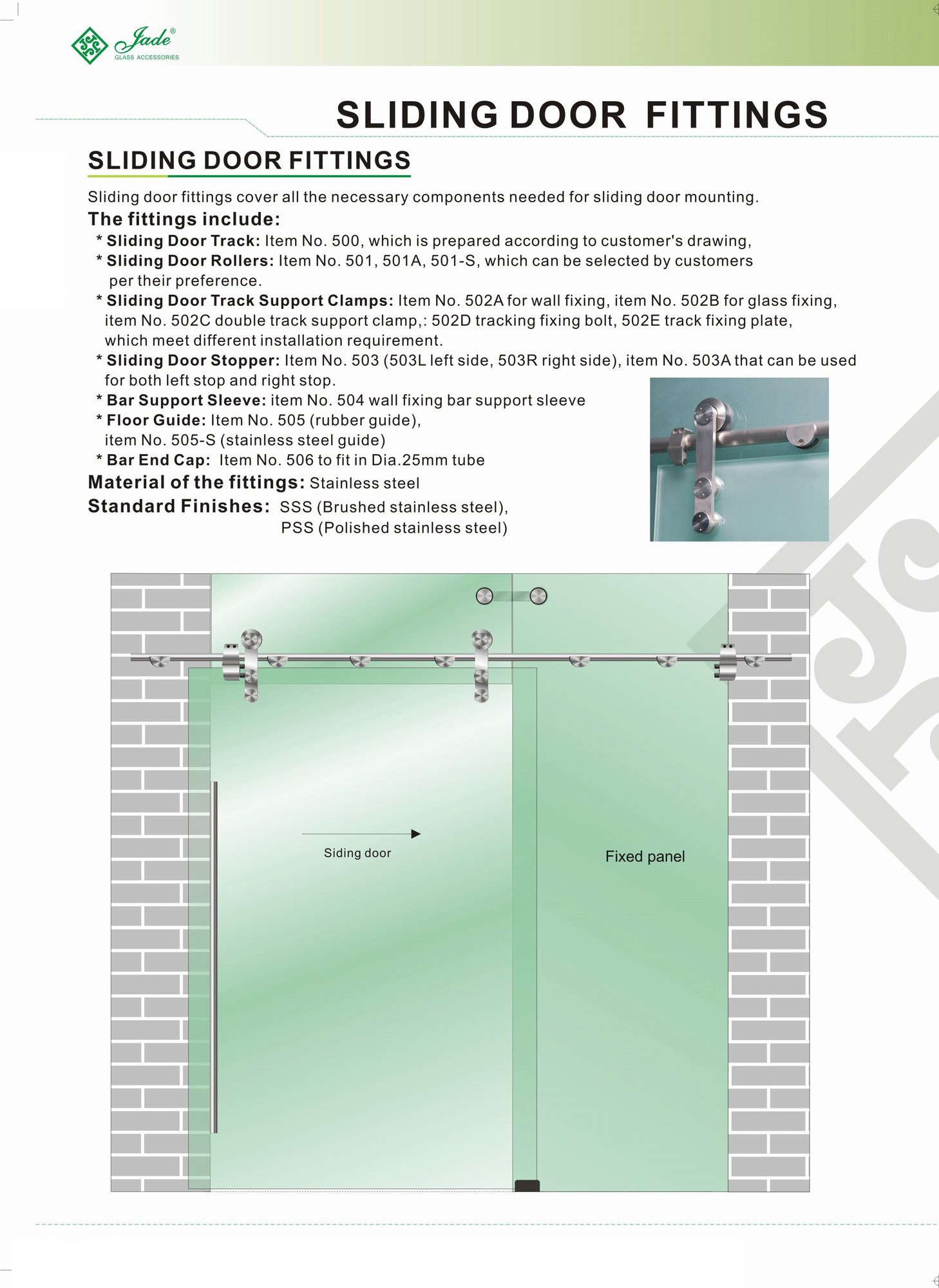

TYPICAL APPLICATION
|
JADE SLIDING DOOR FITTINGS MADE OF STAINLESS STEEL. FINISH: BRUSHED STAINLESS STEEL (SSS) OR POLISHED STAINLESS STEEL (PSS) Standard Supply is for 10-12mm thick glass |
||||||||
 |
 |
 |
||||||
|
501 Sliding Door Roller 501-1 Countersink type, 501-2 Flat type |

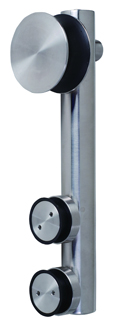

501A Sliding Door Roller 501A-1 Countersink type, 501A-2 Flat type |

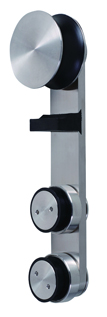

501-S Sliding Door Roller with Stablizer 501-1S Countersink type, 501-2S Flat type |
||||||
 |
||||||||

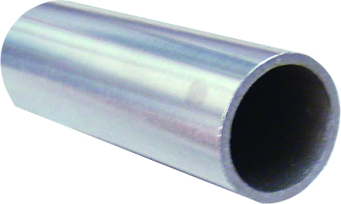

500 Sliding Door Track |
||||||||
 |
 |
 |
||||||
|
502A Wall Mount Track Support |
502B Glass Mount Track Support 502B-1 Countersink type, 502B-2 Flat type |
502C Double Track Support |
||||||
 |
 |
 |
||||||
|
502D Wall Mount Track Support |
502E Glass Mount Track Support 502E-1 Countersink type, 502E-2 Flat type |
503L Stopper, Left side |
||||||
 |
|
|
||||||
503R Stopper, Right side |
502A Stopper |
504 Wall Mount Track Sleeve |
||||||
 |
 |
 |
||||||
|
505S Stainless Steel Floor Guide |
505 Plastic Floor Guide |
506 Track End Cap |
||||||
|
JADE POINT FIXING PARTITION ACCESSORIES MADE OF STAINLESS STEEL. FINISH: BRUSHED STAINLESS STEEL (SSS) OR POLISHED STAINLESS STEEL (PSS) Standard Supply is for 10-12mm thick glass |
||||||||
|
|
|
|
||||||
510 Glass to Glass connector 510-1 Countersink type, 510-2 Flat type Available bar length: 52.5, 60, 82,103 (mm) |
511 Glass to Wall connector 511-1 Countersink type, 511-2 Flat type Available bar length: 52.5, 60, 82,103 (mm) |
512 Glass to Wall/Ceiling connector 512-1 Countersink type, 512-2 Flat type Available bar length: 75, 103 (mm) |
||||||
|
|
 |
||||||
513 Glass connector for three panels 513-1 Countersink type, 513-2 Flat type |
520 Glass connector for two inline panels 520-1 Countersink type, 520-2 Flat type |
|||||||
|
 |
 |
||||||
514 Single point fixing, adjustable 514-1 Countersink type, 514-2 Flat type Available height: 8.5,10.4,12.5,14,18,22(mm) |
514A Single point fixing, non-adjustable 514A-1 Countersink type, 514A-2 Flat type Available height: 6mm |
514B Tube mounting point fixing 514B-1 Countersink type, 514B-2 Flat type |
||||||
|
|
|||||||
50H-A Sliding door handle |
