JADE DOOR CLOSERS

Door Weight needs to be specified when order to make sure proper model is selected

8200-2
Door Width 800 to 1000mm
Door Weight 70 to 90 kg
8200-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg

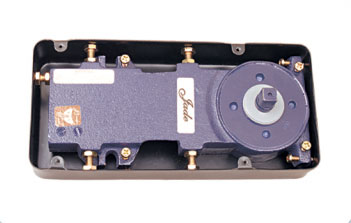

MODEL 8200 SINGLE CYLINDER FLOOR SPRINGS
Hold open at 90 deg. or 105 deg. Max. opening 130 deg.
8000-1
Door Width 600 to 800mm
Door Weight 50 to 70 kg
8000-2
Door Width 800 to 1000mm
Door Weight 70 to 90 kg
8000-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg

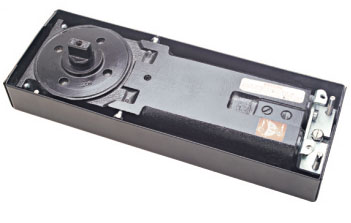

MODEL 8000 DOUBLE CYLINDER (40mm depth) FLOOR SPRINGS
Hold open at 90 deg. or 105 deg. Max. opening 130 deg.

8210-2
Door Width 800 to 1000mm Door Weight: 70-90Kg


8210-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg
MODEL 8210 SINGLE CYLINDER FLOOR SPRINGS
Max. opening 125 deg.
Hold open at 90 deg. or 105 deg.

8212-1
Door Width 600 to800mm Door Weight: 50-70Kg


8212-2
Door Width 800 to 1000mm
Door Weight 70 to 90 kg
MODEL 8212 SINGLE CYLINDER FLOOR SPRINGS
Max. opening 125 deg.
Hold open at 90 deg. or 105 deg.

8213-1
Door Width 600 to 800mm Door Weight: 50-70Kg

8213-2

Door Width: 800-1000mm Door Weight: 70-90Kg

8213-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg

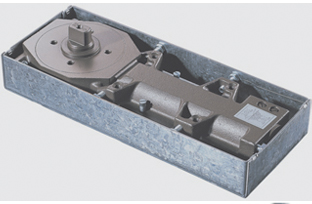

MODEL 8213 SINGLE CYLINDER FLOOR SPRINGS
Max. opening 130 deg.
Hold open at 90 deg. or 105 deg.

8220-2
Door Width 800 to 1000mm Door Weight: 70-90Kg

8220-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg

8220-4
Door Width 1200 to 1300mm
Door Weight 110 to 130 kg

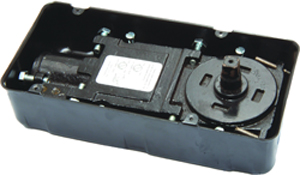

MODEL 8220 SINGLE CYLINDER FLOOR SPRINGS
Max. opening 130 deg.
Hold open at 90 deg. or 105 deg.

8230-2
Door Width 800 to 1000mm Door Weight: 70-90 Kg

8230-3
Door Width 1000 to 1200mm
Door Weight 90 to 110 kg

8230-4
Door Width 1200 to 1300mm
Door Weight 110 to 130 kg

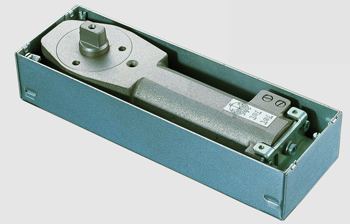

MODEL 8230 SINGLE CYLINDER FLOOR SPRINGS
Max. opening 180 deg.
Hold open at 90 deg. or 105 deg. or Random hold open at 130-180 degree available on request

8500
Max. Door Width 900mm
Max. Door Weight 40 kg

8502
Max. Door Width 1000mm
Max. Door Weight 45 kg
8504
Max. Door Width 1200mm
Max. Door Weight 80 kg
8500 WOODEN DOOR CLOSERS
